blaugelb

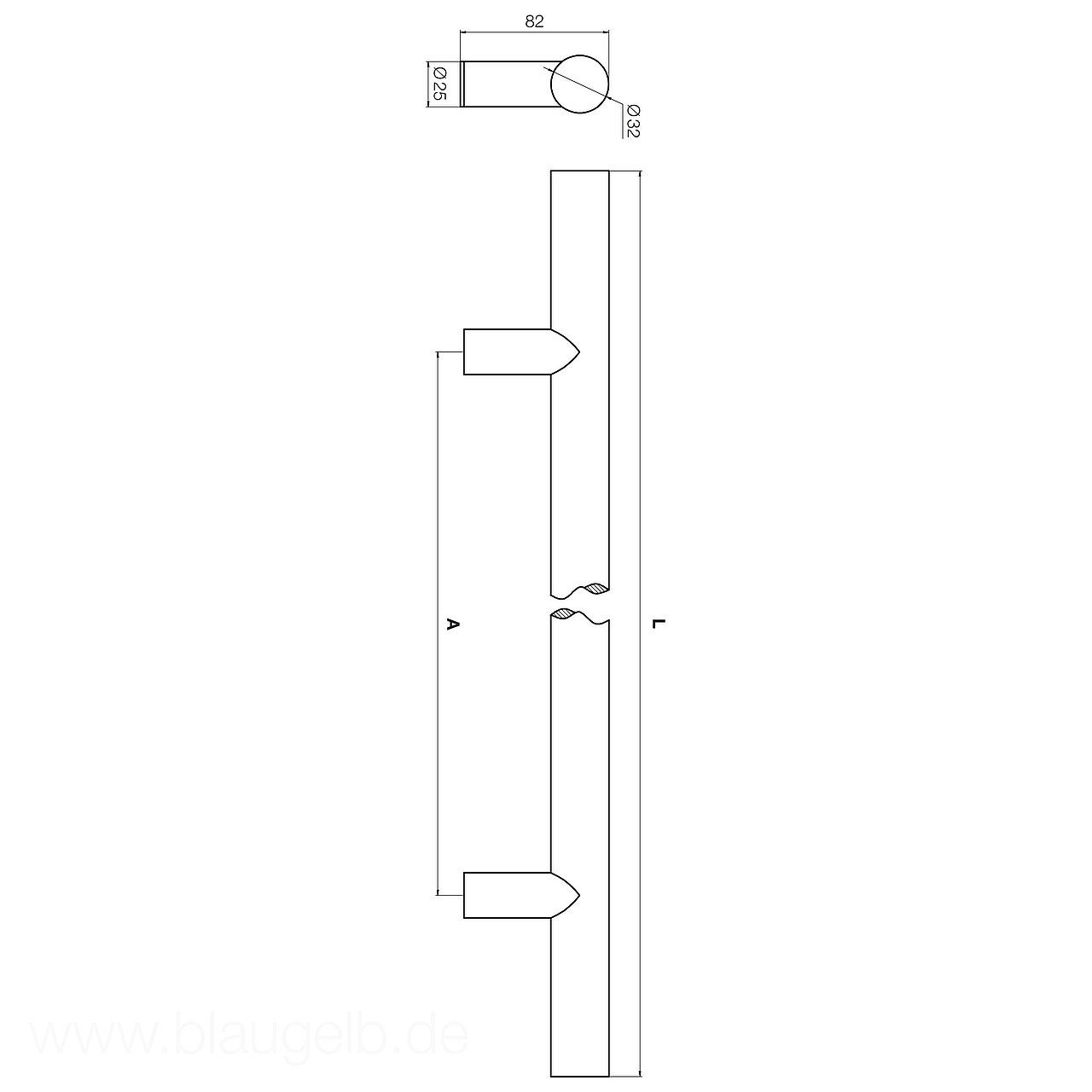

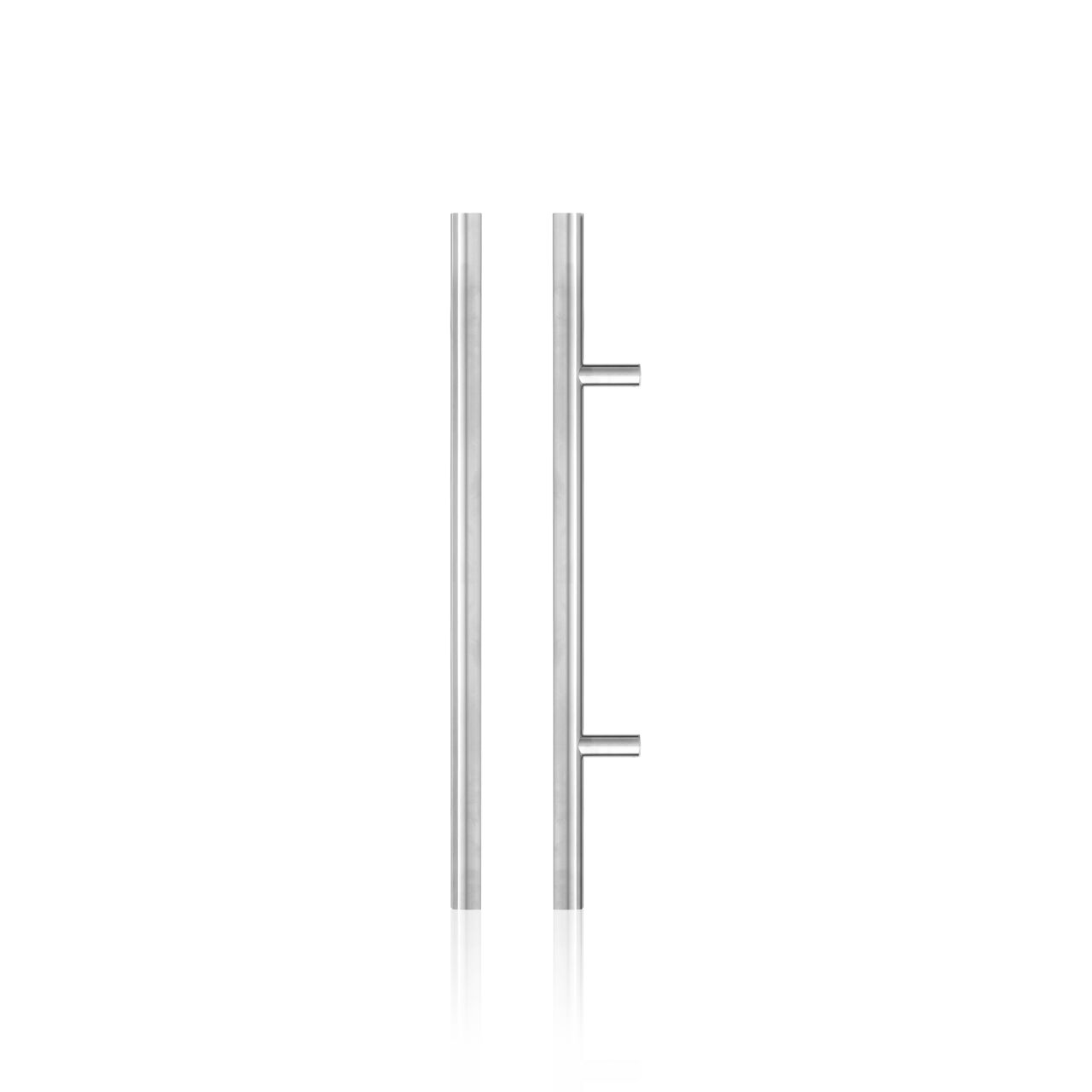

Door handle with 90° angle stilts
The blaugelb door handle with 90° angle stilts in stainless steel is suitable for mounting on one side of a door or as a pair. It comprises a stainless steel tube with a diameter of 32 mm, available in lengths from 350–2,000 mm. The blaugelb door handles are supplied with angle stilts.
The door handle with 90° angle stilts can easily be installed on the following types of door:
- On aluminium doors
- On plastic doors
- On wooden doors
The fastening depends on the type of door chosen.
Door types and fastening accessories required:
| Fixing accessories | Hole |
|---|---|
| Fastening T01/10 K/H/A M10x25 mm, one-sided Item no. 9077560 | Ø 8,5 mm |
| Fastening T01/10 K/H/A M10x30 mm, one-sided Item no. 9065449 | Ø 8,5 mm |
| Fastening T01/10 K/H/A M10x35 mm, one-sided Item no. 9052865 | Ø 8,5 mm |
| Fastening T01/10 K/H/A M10x46 mm, one-sided Item no. 9052866 | Ø 8,5 mm |
| Fastening T01/12 K/H/A M12x30 mm, one-sided Item no. 9128304 | Ø 10,5 mm |
| Fastening T01/12 K/H/A M12x35 mm, one-sided Item no. 9128305 | Ø 10,5 mm |
| Fastening T01/12 K/H/A M12x46 mm, one-sided Item no. 9128306 | Ø 10,5 mm |
| Fastening in pairs* T01 K/H/A TS 10-15 2 adapter, threaded rod M10x30 mm Item no. 9052867 | Ø 10,0 mm |
| Fastening in pairs T01 K/H/A TS 60-70 2 adapter, threaded rod M10x85 mm Item no. 9052868 | Ø 10,0 mm |
| Fastening in pairs T01 K/H/A TS 80-90 2 adapter, threaded rod M10x105 mm Item no. 9052869 | Ø 10,0 mm |
| Fastening in pairs T01 K/H/A TS 95-110 2 adapter, threaded rod M10x120 mm Item no. 9052870 | Ø 10,0 mm |
* When mounting with glass doorrs please use the blaugelb distance spacer round Item no. 9076800 in addition
- high-quality, evenly brushed stainless steel surface
- agreeable to the touch
- 100 % material guarantee
- robust, hard-wearing door handle design
| Material 1: | Stainless steel tube |
| Material 2: | Stainless steel 1.4301 |
| Surface: | Brushed stainless steel, fine matt |
| Version: | Angle stilts, 90° |
| Diameter of handle bar: | 32 mm |
| Fastening: | Not included in delivery specification |
| Packing unit: | 1 piece |
The information provided in this document corresponds to the information and technical details available to the best of our knowledge. However, this does not constitute a guarantee pursuant to section 443 of the German Civil Code (BGB). Our processing instructions are to be considered only as general guidelines and may differ in the individual case due to the range of possible uses and applications. They do therefore not automatically exempt the user from carrying out their own tests. We reserve the right to make technical modifications and enhancements at any time.
| Product name | PU | Item no. |
|---|---|---|
| blaugelb door handle with 90° angle stilts, fine matt stainless steel 210/350 mm | 1 piece | 9052789 |
| blaugelb door handle with 90° angle stilts, fine matt stainless steel 200/400 mm | 1 piece | 9052790 |
| blaugelb door handle with 90° angle stilts, fine matt stainless steel 210/400 mm | 1 piece | 9052791 |
| blaugelb door handle with 90° angle stilts, fine matt stainless steel 300/400 mm | 1 piece | 9052792 |
| blaugelb door handle with 90° angle stilts, fine matt stainless steel 300/500 mm | 1 piece | 9052793 |
| blaugelb door handle with 90° angle stilts, fine matt stainless steel 400/600 mm | 1 piece | 9052844 |
| blaugelb door handle with 90° angle stilts, fine matt stainless steel 600/800 mm | 1 piece | 9052845 |
| blaugelb door handle with 90° angle stilts, fine matt stainless steel 800/1000 mm | 1 piece | 9052846 |
| blaugelb door handle with 90° angle stilts, fine matt stainless steel 1000/1200 mm | 1 piece | 9052847 |
| blaugelb door handle with 90° angle stilts, fine matt stainless steel 1200/1400 mm | 1 piece | 9052848 |
| blaugelb door handle with 90° angle stilts, fine matt stainless steel 1400/1600 mm | 1 piece | 9052849 |
| blaugelb door handle with 90° angle stilts, fine matt stainless steel 1600/1800 mm | 1 piece | 9052850 |
| blaugelb door handle with 90° angle stilts, fine matt stainless steel 1800/2000 mm | 1 piece | 9052851 |
